Secure virtualization for large-scale networks

• Cisco Secure SD-WAN based on on-prem or cloud management(Cisco vManage)

• Support Cisco cloud based full security features

• Support with wide range of Cisco platforms

• SD-WAN functions can be provided with the same Cisco devices by upgrading software

Common Deployment Options

Broadband + LTE, which is ideal for low-priority branches or remote locations
Dual broadband, which is ideal for networks without MPLS, at branch locations or data centers
MPLS + dedicated internet, which is ideal for sites with mission-critical applications, typically data centers and/or headquarters

Components

vSmart Controller

Virtual appliance
Runs on VMware vSphere ESXi Hypervisor
Establishes secure Datagram Transport Layer Security (DTLS) connections to each vEdge router in the network
Overlay Management Protocol (OMP) to share routes, security and policy info

vEdge Routers

Uses preinstalled security credentials to automatically authenticate each new vEdge device before it joins the network
Centralized policy engine in the vSmart controller provides rich inbound and outbound policy constructs to manipulate routing information, access control, segmentation, extranets and service chaining
Full-featured IP routers perform standard functions such as OSPF, BGP, QoS, ACLs, and routing policies
Integrated enterprise firewall functionality
Automatically establishes secure DTLS sessions with the vSmart controller and standard IPsec sessions with other vEdge routers
vEdge 100 router includes tabletop and 1RU sizes and 100 Mbps encryption capacity

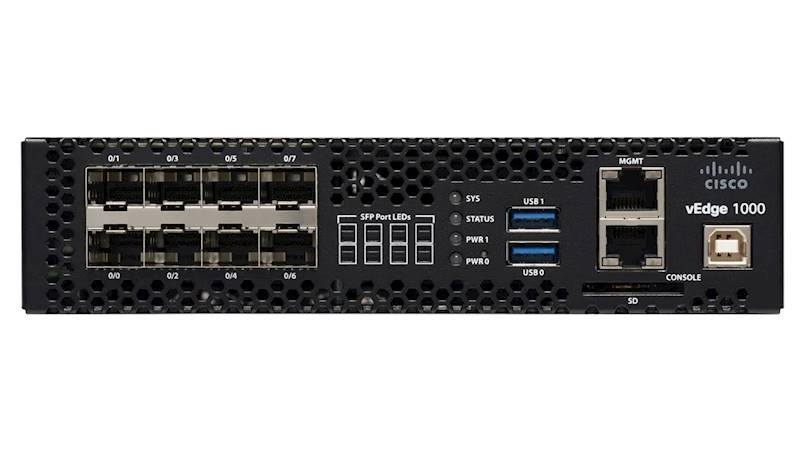

vEdge 1000 router includes half-width and 1RU sizes and 1 Gbps encryption capacity
vEdge 2000 router includes full-widths and 1RU and 10 Gbps encryption capacity

vBond Orchestrator

Virtual appliance enabling configuration management and monitoring of the solution
Runs on VMware vSphere ESXi Hypervisor with a minimum of two vCPUs and 4GB of memory
Minimum of two vCPUs and 8GB of memory

Virtual appliance enabling configuration management and monitoring of the solution
Runs on VMware vSphere ESXi Hypervisor with a minimum of two vCPUs and 8GB of memory
Centralized policy and distributed enforcement including Overlay Management Protocol to eliminate bottlenecks and enable quick turnaround in network changes
Automated secure bringup including Trusted Platform Module (TPM) chip with signed certificate to help ensure automated authentication of vEdge routers joining the network
Integrated enterprise firewall including user-based security policies and segmentation, IPsec, VPN, NAT and ACLs standard to enhance security and simplify infrastructure management
Encrypted control and data traffic that can scale to multiple tens of thousands of network endpoints and 100K+ routes while still providing multipoint security
Scale-out architecture with redundancy that can withstand multiple failures in the overlay network for both the control and data plane
End-to-end network segmentation that can be rapidly enabled without additional control plane protocols to protect the network from internal and external threats
